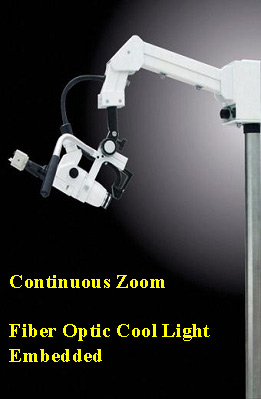

Precision, Flexibility and Unlimited View Angles & Motiond OmniScope™Surgical Microscope
• CE approved and ISO-9001 complied.
• Virtually unlimited viewing angles for surgical procedures
due to unique omni-directional mounting design.
• Stable, free working space during procedures due to
advanced suspension system. Setup easily moved and
adjusted to location or to patient or physician's liking.
• Continuous zoom stereoscopy provides precision & flexibility
• Wide range of field of views: wide field for screening and
high magnification for close-ups.
• Clear, sharp images throughout entire magnification range
(x6.5 to x45).
• Fiber optic light cool source eliminates burning of tissues
• Easily converted into a procedure scope or regular
microscope if needed
• 5 Year Warranty

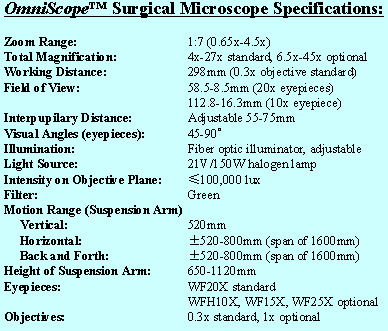

Our OmniScope™ surgical microscope features amazingly sharp imaging, continuous zoom range, long working distance,
steady and smooth maneuvering, flexible suspension arm, and virtually unlimited viewing angles. With 20x eyepieces,
the OminiScope™ has a continuous zoom with 4x-27x magnification and 298mm working distance. Designed for low viewing eyestrain,
it includes dual diopter adjustments to both eyepieces for operator's comfort. The fiber optic cool light source induces zero
tissue heating, and its 150W Quartz Halogen bulb provides ultra-bright illumination, adjustable for any settings.
The OminiScope™ has a rock-solid base design, with low center of gravity and choice of 3- or 5-leg mobile, study base.
The suspension arm employs locking casters and stainless steel handles. The surgical scope is available in binocular or
trinocular, with built-in video monitor/record port in "T" version. They come with CE certification and 5 years warranty.
• Magnification up to x120, Working
Distance up to 247mm
• Designed for Viewing Conform w/
Diopter Adjustments
• Complete w/ Bright Fluorescence
Light and Track Stand
• 3 Year Warranty

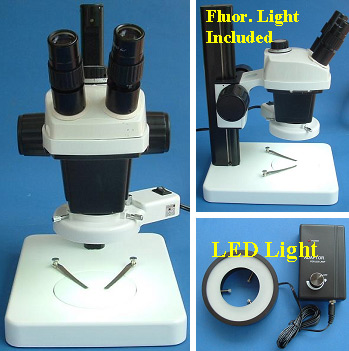

The PSZ Mini™ microscope combines high quality continuous zoom, stereo functions in a compact,
portable and low-cost instrument. It is especially suitable for industrial, scientific and educational uses,
such as production floor micro assembly, inspection of electronic boards or micro surgical tools, biological
tissue dissections, and science labs in educational institutes.

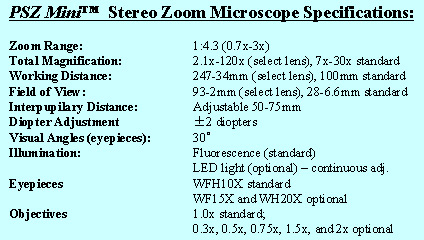

The mini scope features zoom ratio of 1:4.3 (0.7x-3x), working distance up to 247mm,
field of view up to 93mm and total magnification up to 120x. For standard package,
it has working distance of 100mm, field of view of 28-6.6mm and total magnification of 7x-30x,
with a embedded, bright fluorescence lamp. Diopter adjustments are also available for both eyepieces for the comfort of viewer.
It conforms to ISO-9001 and carries a 3 year warranty.
