Precision Stereo ZOOM Microscopes IV
Leading Brand's Performances at Affordable Prices!




GlobalTown Microtech proudly supplies the fourth generation of precision stereo zoom microscopes, PSZ IV, which are ideal tools for biological tissue dissections, cell manipulation/injection, surgical tool or electrode inspections, and other applications that requires long working distance, large zoom and magnified stereo viewing.

The PSZ IV features two parallel beam paths and high quality optics that offer you high resolution and distortion-free contrast image throughout the entire zoom range. The zoom ratio is 8:1 and working distance is long up to 296mm. The modular design allows various combinations of high resolution microscopes: binocular, trinocular, w/ video/camera, boom stands/ articulated arms, etc.


PSZ IV

Specifications:

Design principle:
two parallel beam paths optic system, modular construction
Standard set :
PSZ IV optic head with 1.0x  planachromatic objective, WFH 10 x eye piece
Zoom range :
0.62x-5x
Zoom ratio :
8:1
Magnification:
6.2x-50x (with accessory lens: 1.9x-400x )
Working distance :
80mm (with accessory lens: 26mm-296mm)
Field of view :
33.9mm- 4.2mm (with accessory lens: 106mm- 0.6mm)
Interpupilary distance :
50mm-75mm
Diopter Adjustment :
± 5 Diopters
Microscope body :
rotatable 360 °
Optional objective :
 planachrmatic: 0.32x , 0.5x, 0.63x, achromatic: 1.6x, 2.0x
Optional eyepiece :
WFH10x-D/21, WF16x, WF20x, WF25x, WF40x



PSZT IV-FP
(Camera not included)

 PSZ IV-TS PSZ IV-FC

PSZ IV-BS

PSZ IV-BSL

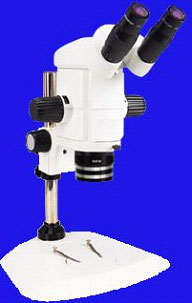

PSZ IV
 Precision Stereo Zoom Microscope on post stand --
PSZ IV-TS
 Precision Stereo Zoom Microscope on track stand --
PSZ IV-BS
 Precision Stereo Zoom Microscope on boom stand --
PSZ IV-BSL
 Precision Stereo Zoom Microscope on boom stand
with cool light source & optic fiber 		--
PSZ IV-FC
 Precision Stereo Zoom Microscope on flexible clamp arm --
PSZT IV
 Precision Stereo Zoom Trinocular Microscope
on post stand (Camera & mount not included) 		--
PSZT IV-FP
 Precision Stereo Zoom Trinocular Microscope on flexible post stand --
PSZ IV-BB
 PSZ IV Binocular Body --
PSZ IV-TB
 PSZ IV Trinocular Body --
1601
 Post Stand w/ 76mm focus mount --
1602
 Boom Stand w/ focus mount --
1604
 Flexible Clamp Arm, without focus mount --
1606
 Focus Mount for PSZ --
1607
 Wide Field Eye Piece 10x (a pair) --
1608
 Wide Field Eye Piece 16x (a pair) --
1610
 Wide Field Eye Piece 25x (a pair) --
1611
 Wide Field Eye Piece 40x (a pair) --
1612
 Planachromatic Objective (Distortion Free, 0.32x) --
1613
 Planachromatic Objective (Distortion Free, 0.50x) --
1615
Planachromatic Objective (Distortion Free, 1.00x) --
1617
 Planachromatic Objective (Distortion Free, 2.00x) --
1618
 CCD Camera Mount (0.3x) --
1619
 CCD Camera Mount (0.5x) --

Eyepiece WFH10X-D/21 WF16X/14 WF20X/11 WF25X/9 WF40X/6 Working Distance
Objective Mag FOV
(mm) 		Mag FOV
(mm)		 Mag FOV
(mm)		 Mag FOV
(mm)		 Mag FOV
(mm)
0.32x 1.9x--
16x 		106--13.1 3.0x--25.6x 70.6--8.8 3.9x-32x 55.4--6.9 5x--40x 45.4--5.6 7.9x--64x 32.2--3.8 296mm
(11.65in)
0.5x 3.1x--25x 67.7--8.4 5x--40x 45.2--5.6 6.2x--50x 35.5--4.4 7.8x--62.5x 29--3.6 12.4x--100x 19.4--2.4 187mm
(7.36in)
0.63x 3.9x--31.5x 53.8-6.7 6.2x--50.4x 35.8--4.4 7.8x--63x 28.2--3.5 9.8x--78.8x 23--2.9 15.9x--126x 15.4--1.9 149mm
(5.87in)
1.0x 6.2x--50x 33.9--4.2 9.9x--90x 22.6--2.8 12.4--100x 17.7--2.2 15.5x--125x 14.5--1.8 24.8x--200x 9.7--1.2 80mm
(3.15in)
1.6x 9.9x--80x 21.2--2.6 15.9x--128x 14.1--1.8 19.8--160x 11.1--1.4 24.8x--200 9.1--1.1 39.7x--320x 6.1--0.8 50mm
(1.97in)
2.0x 12.4x--100 16.9--21 19.8x--160x 11.3--1.4 24.8x--200x 8.9--1.1 31x--250x 7.3--0.9 49.6x--400x 4.8--0.6 26mm
(1.02in)
