Metal Microelectrodes

Great Microelectrodes Makes
Great Extracellular Recording !
(Tungsten-TME, Platinum-Iridium-PIM, Parylene coated or polyimide tubing insulated, etc.)

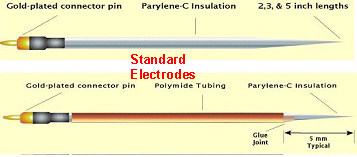

P/N (Standard)

TME300301A3
TME300305A3
TME300310A3
TME300320A3
TME300350A3

PIM200301H3
PIM200305H3
PIM200310H3
PIM200320H3
PIM200350H3

PIM2PT301H3
PIM2PT305H3
PIM2PT310H3
PIM2PT320H3
PIM2PT350H3

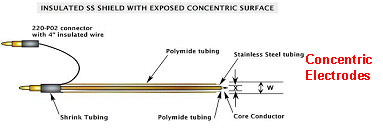

P/N (Concentric)

TME3CEA3
TME5CEA5

Sizes
(length x tip)
76mmx2u
76mmx2u
76mmx1u
76mmx1u
76mmx1u

65mmx3u
65mmx3u
65mmx2u
65mmx2u
65mmx1u

65mmx3
65mmx3
65mmx2
65mmx2
65mmx2

Length*W*X
(mm)
76x0.325x0.126
127x0.35x0.95

Impedance

0.1M
0.5M
1.0M
2.0M
5.0M

0.1M
0.5M
1.0M
2.0M
5.0M

0.1M
0.5M
1.0M
2.0M
5.0M

Tip

2-3u
2-3u

Insulation

Parylene
Parylene
Parylene
Parylene
Parylene

Parylene
Parylene
Parylene
Parylene
Parylene

Polyimide
Polyimide
Polyimide
Polyimide
Polyimide

Insulation

double polyimide
double polyimide

Applications

Rec. & Stim.
Rec. & Stim.
Rec. & Stim.
Rec. & Stim.
Rec. & Stim.

Rec. & Stim.
Rec. & Stim.
Rec. & Stim.
small cells
small cells

Rec. & Stim
Rec. & Stim
Rec. & Stim
Rec. & Stim
Rec. & Stim

Applications

Local Rec.
Local Rec.

Sensitive Force Transducers, i-FOT

The i-FOT series transducers are isometric force transducers with excellent linearity and high sensitivity ranging from 2mg to 500grams. They feature a protective mount sleeve (Ø=0.37”) and a DIN-8 connector directly compatible with our data acquisition system, ThinkWave 1600-4/8.

P/N

i-FOT2
i-FOT10
i-FOT100
i-FOT500

Range

2mg-2g
10mg-10g
100mg-100g
500mg-500g
